SleeveProbe™
The world's strongest fine pitch test probe
High-performance contacting - even with residues and surface coatings
Conventional fine pitch test probes often reach their limits on hard, contaminated, or coated surfaces. SleeveProbe™, however, delivers the highest contact force on the market at 3 N in a 30-mil pitch.

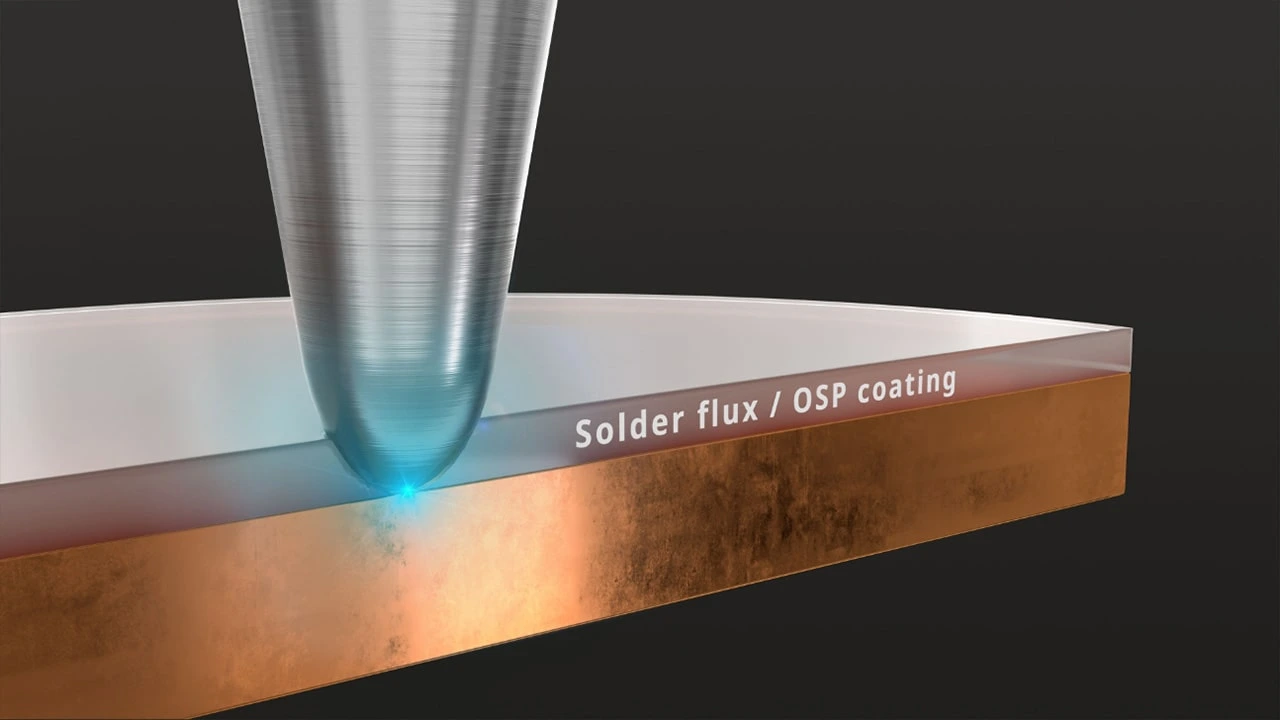

- Penetrates solder flux and OSP coatings effortlessly
- Variable force generation with the same stroke - significantly reduces probe exchanges
- Higher efficiency with lower maintenance and operating costs
Outstanding service life - as robust as a standard test probe

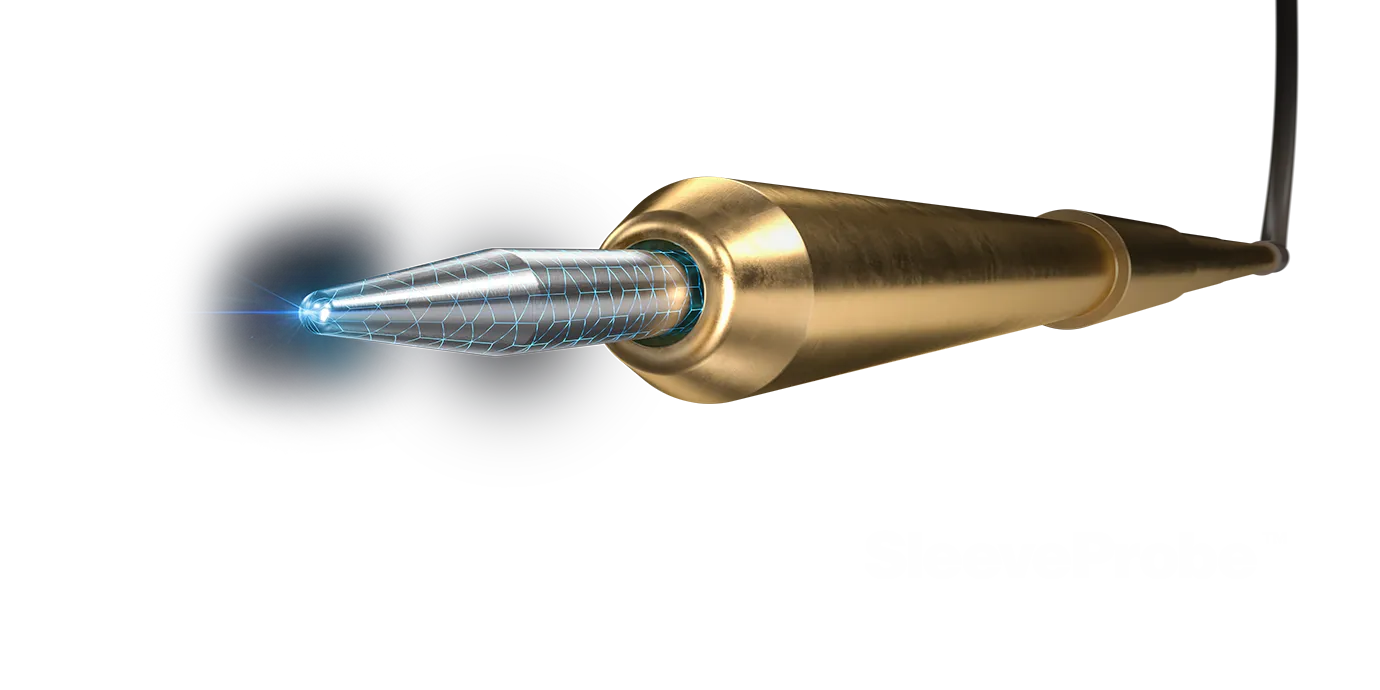

While conventional fine pitch probes are often susceptible to wear, SleeveProbe™ features a robust design and the use of components from our standard test probes on the actuating side.
- Service life comparable to robust 100-mil standard probes
- Durable design thanks to guide sleeve with increased wall thickness

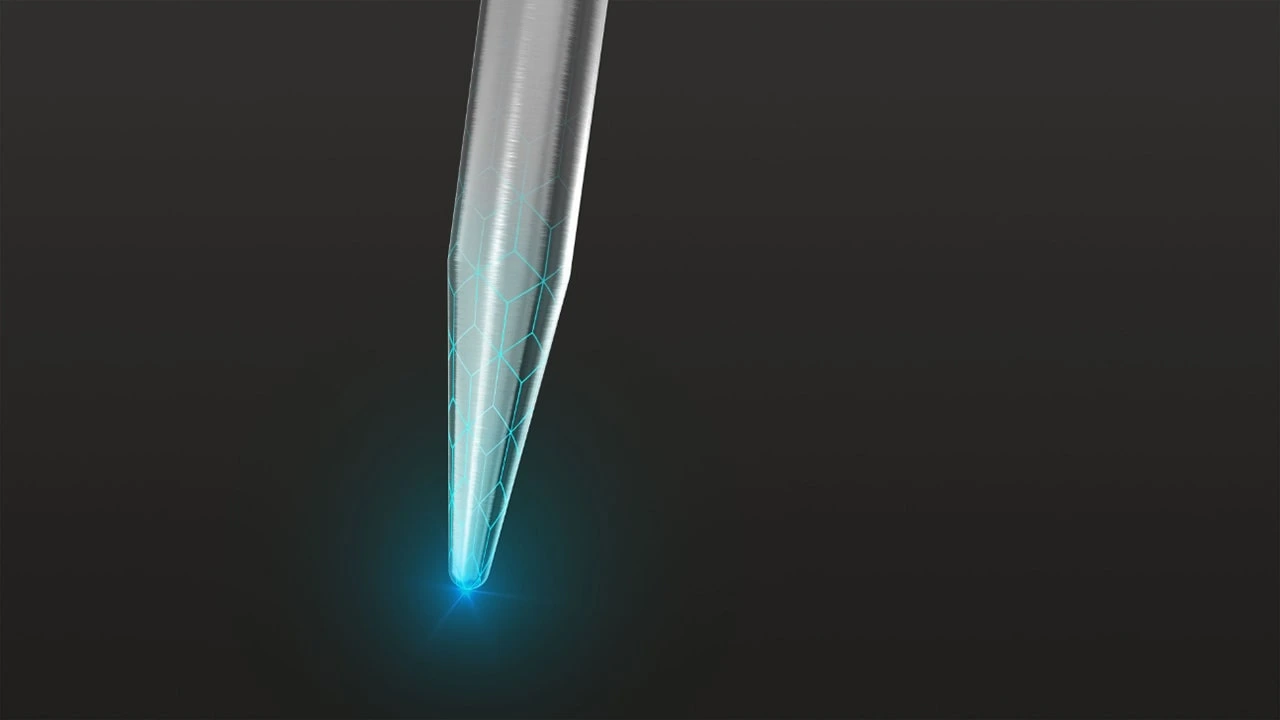

- Low-wear tip made of durable tungsten
Special feature: Thanks to the flexible plunger, tolerances such as angled bores are reliably compensated for in fixture configurations, which has a positive effect on service life.

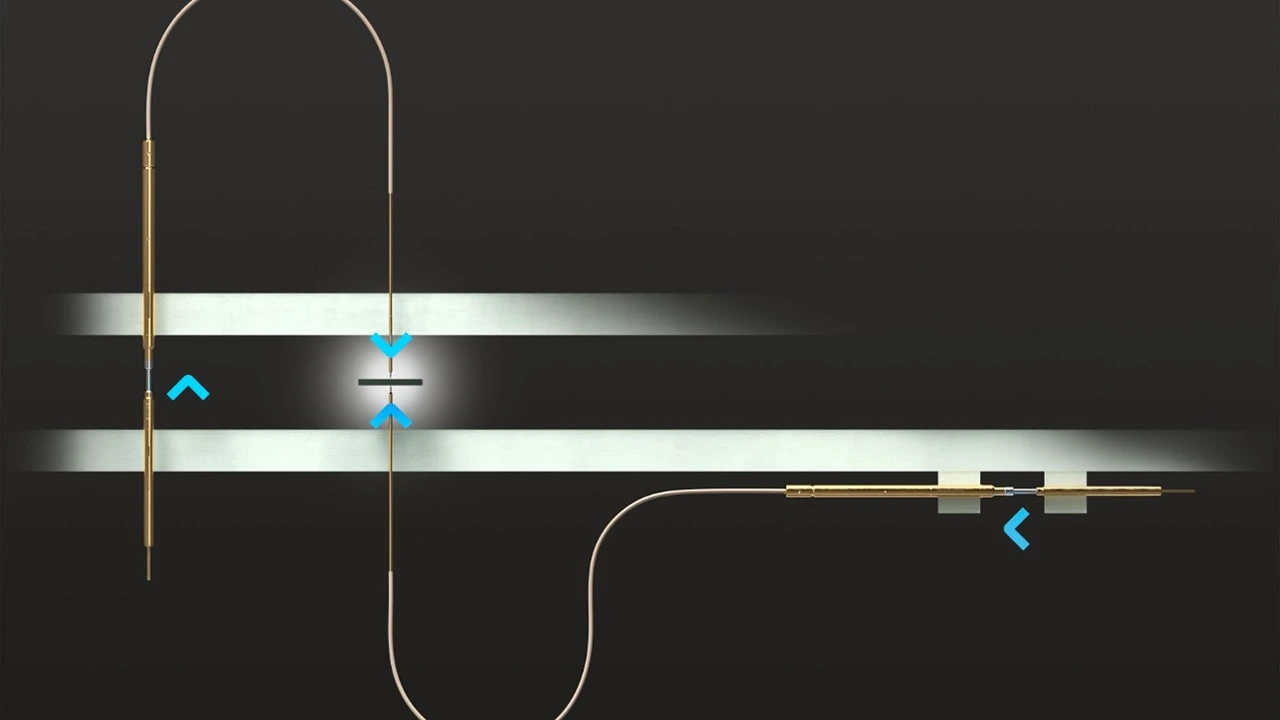

Maximum flexibility in the smallest of spaces - thanks to 360° contacting
Electronic devices are becoming increasingly compact and complex – which not only require smaller components, but also flexible PCB moulds. SleeveProbe™ masters these challenges with ease:
- World’s first test solution for true 360° contacting
- Maximum design freedom thanks to flexible positioning of the test probes
- Independent selection of contacting and actuation direction
SleeveProbeTM
developed for demanding applications
- Ideal for contacting contaminated surfaces (solder flux) or coated surfaces (e.g. OSP coating)
- Perfect for finepitch applications in inline fixtures with the service life of robust 100 mil standard probes
- Enables angled contacting of test points for flexibility in fixture design
- Precise contacting of the smallest test points and realisation of minimal installation heights
- Easy to combine with standard test probes, ideal for multi-stage contacting without additional fixture stroke (e.g. ICT/FCT)
