Welcome to the INGUN online shop
Use the filters on the left-hand side to refine your search and easily find the right products for your application.
710 Product series
INGUN SELECTION
High-current test probe

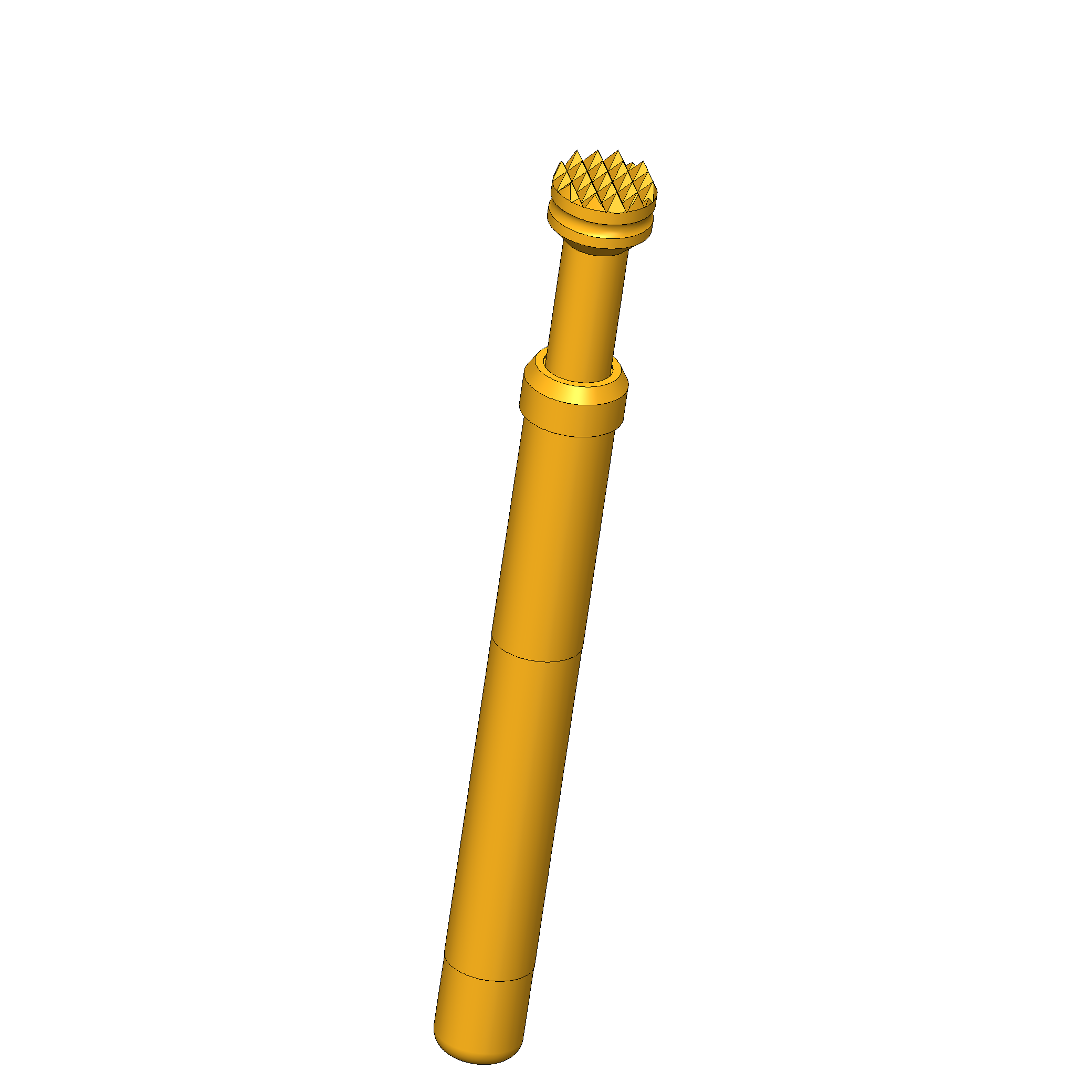

HSS-150
- Grid 5.08 mm [200 mil]
- Total length 38.5 mm [1.51 in]
INGUN SELECTION

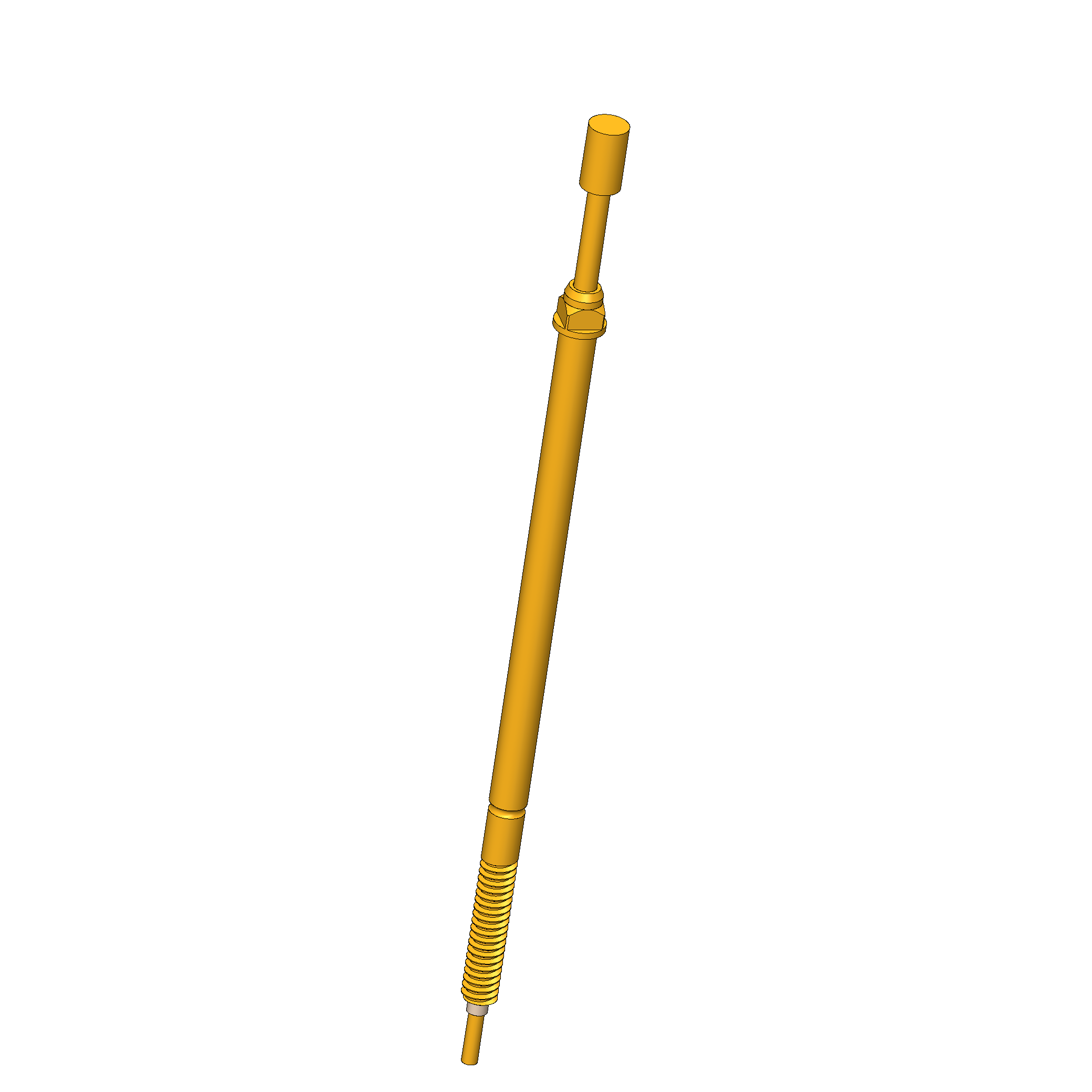

Switching Probe (NO)
SKS-215 M
- Grid 2.54 mm [100 mil] – 2.8 mm [110 mil]
- Total length 46.5 mm [1.83 in]
INGUN SELECTION

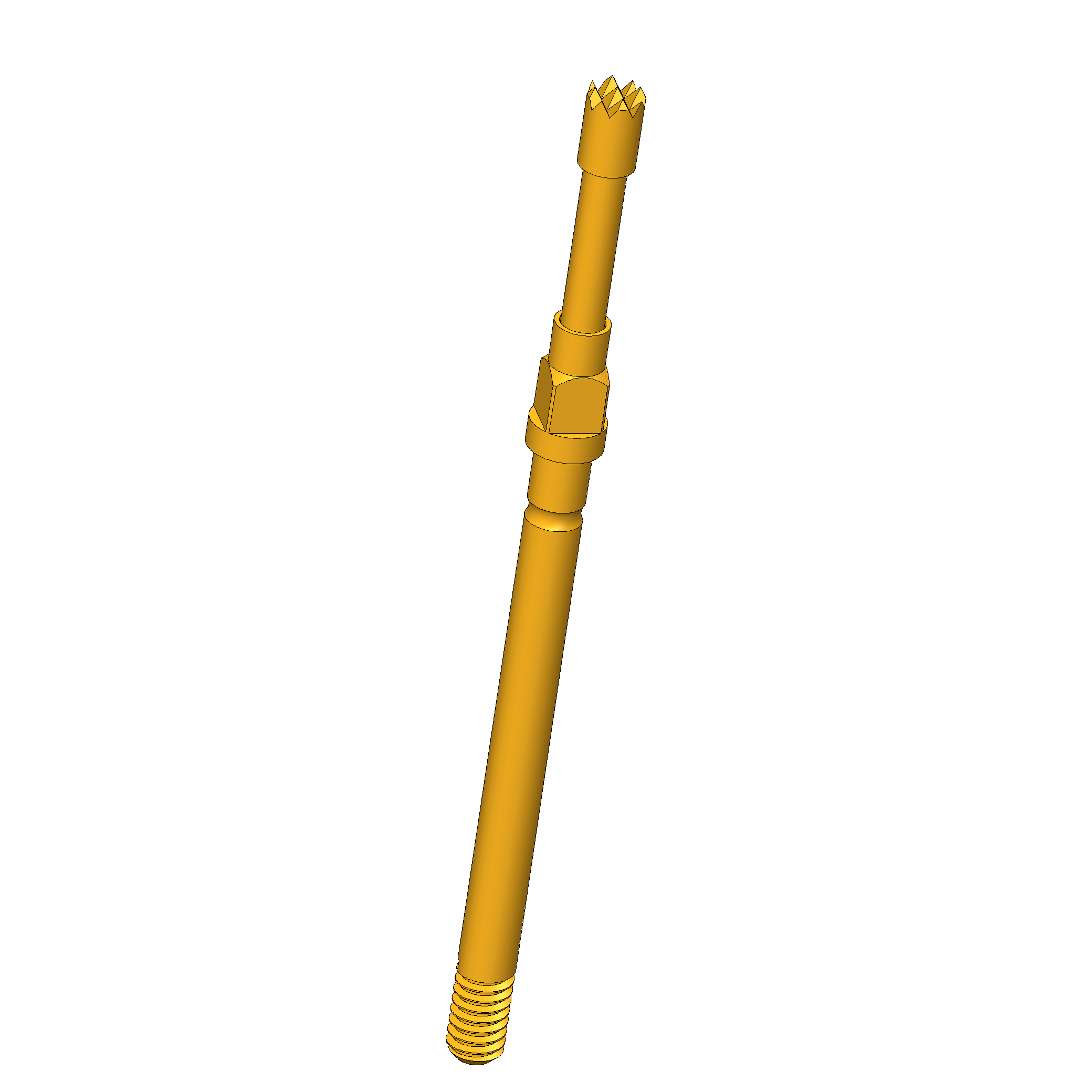

Test Probe
GKS-001 M
- Grid 1.91 mm [75.1 mil]
- Total length 19 mm [.748 in] – 21 mm [.826 in]
INGUN SELECTION

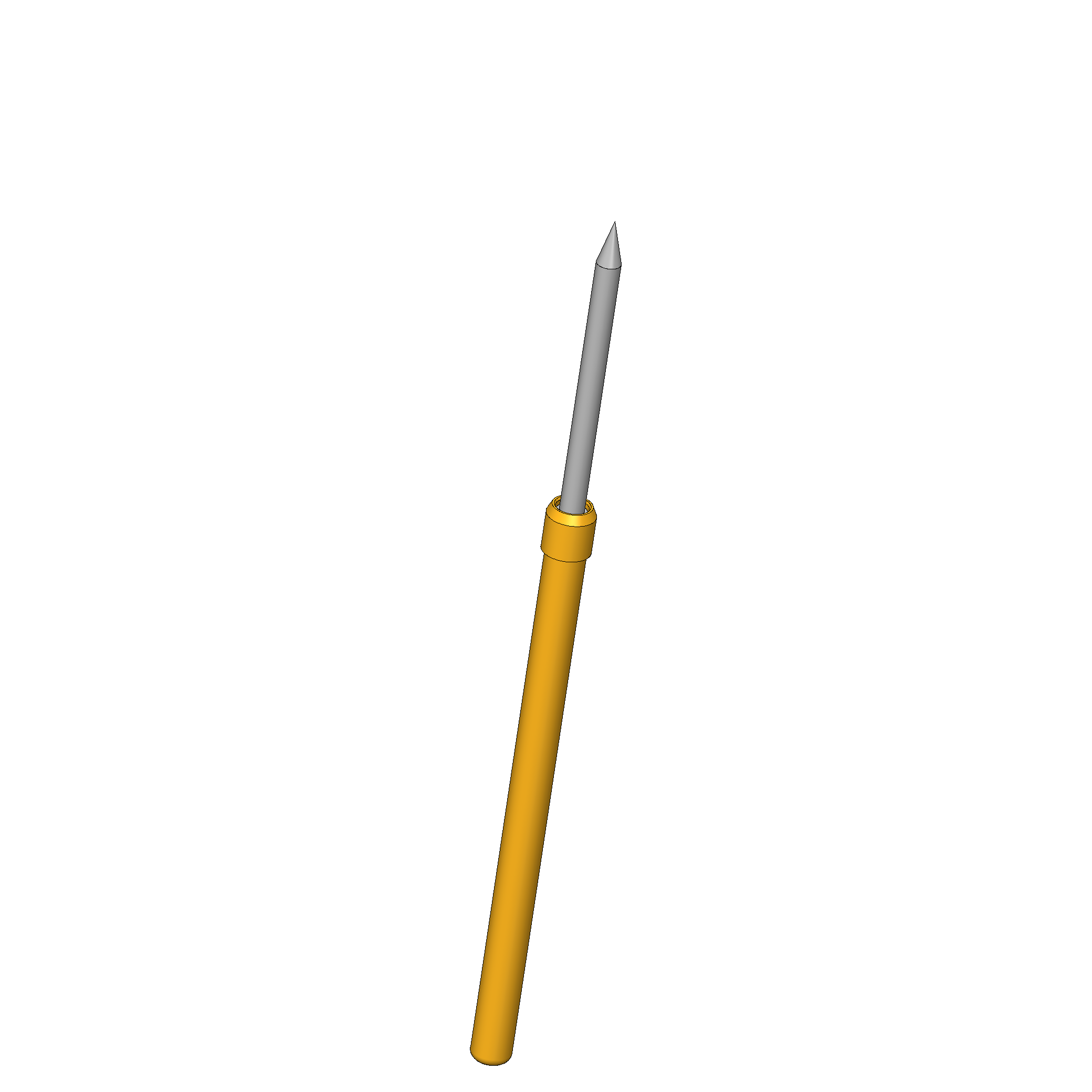

Test Probe
GKS-412
- Grid 2.54 mm [100 mil]
- Total length 37.8 mm [1.48 in] – 44.8 mm [1.76 in]
INGUN SELECTION

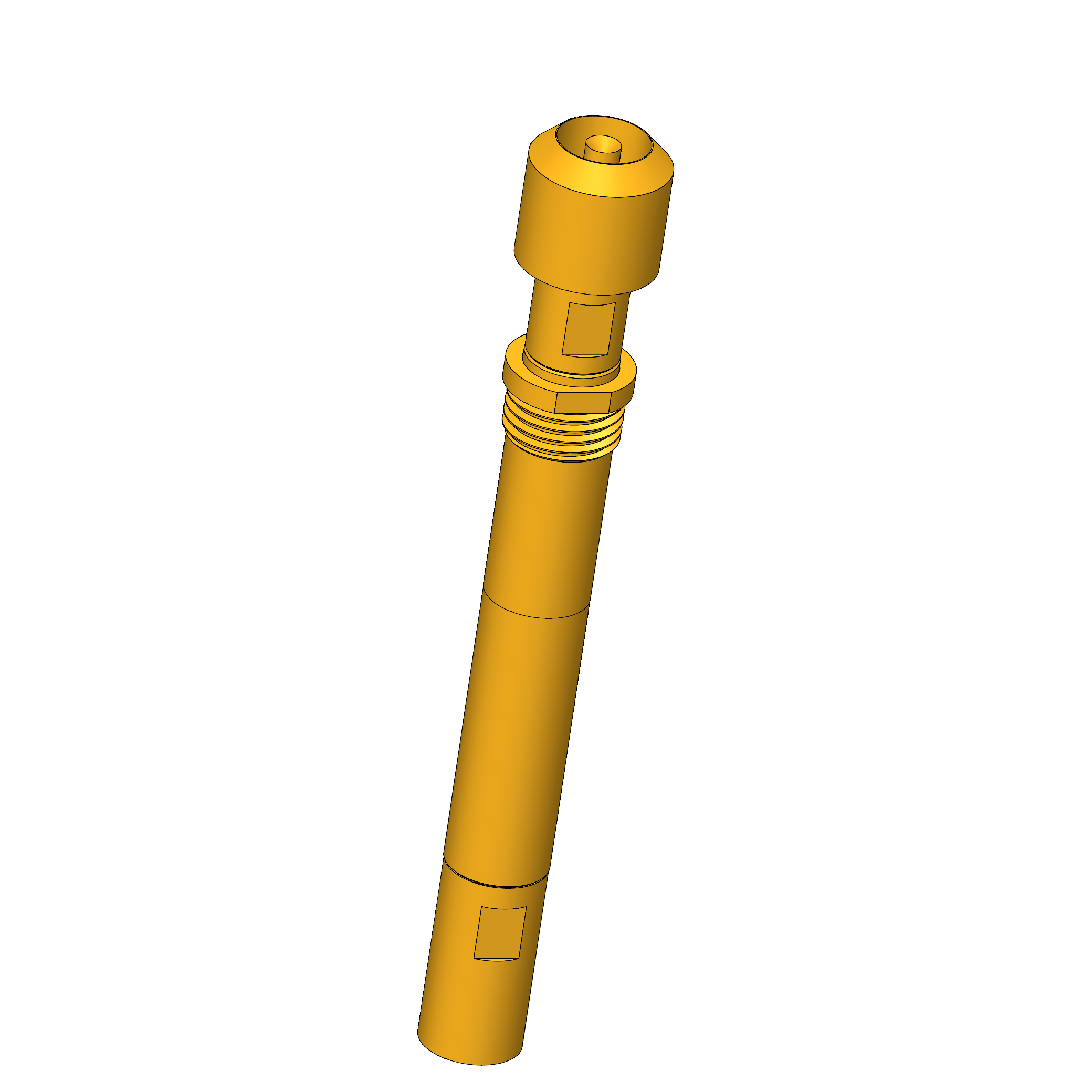

Radio-frequency probe
HFS-840 M
- Grid 5.9 mm [232 mil] – 13.5 mm [531 mil]
- Total length 42.2 mm [1.66 in] – 45.9 mm [1.8 in]
- Frequency range up to 4 GHz
- Interface of compatible assembly MCX 50 Ohm
INGUN SELECTION

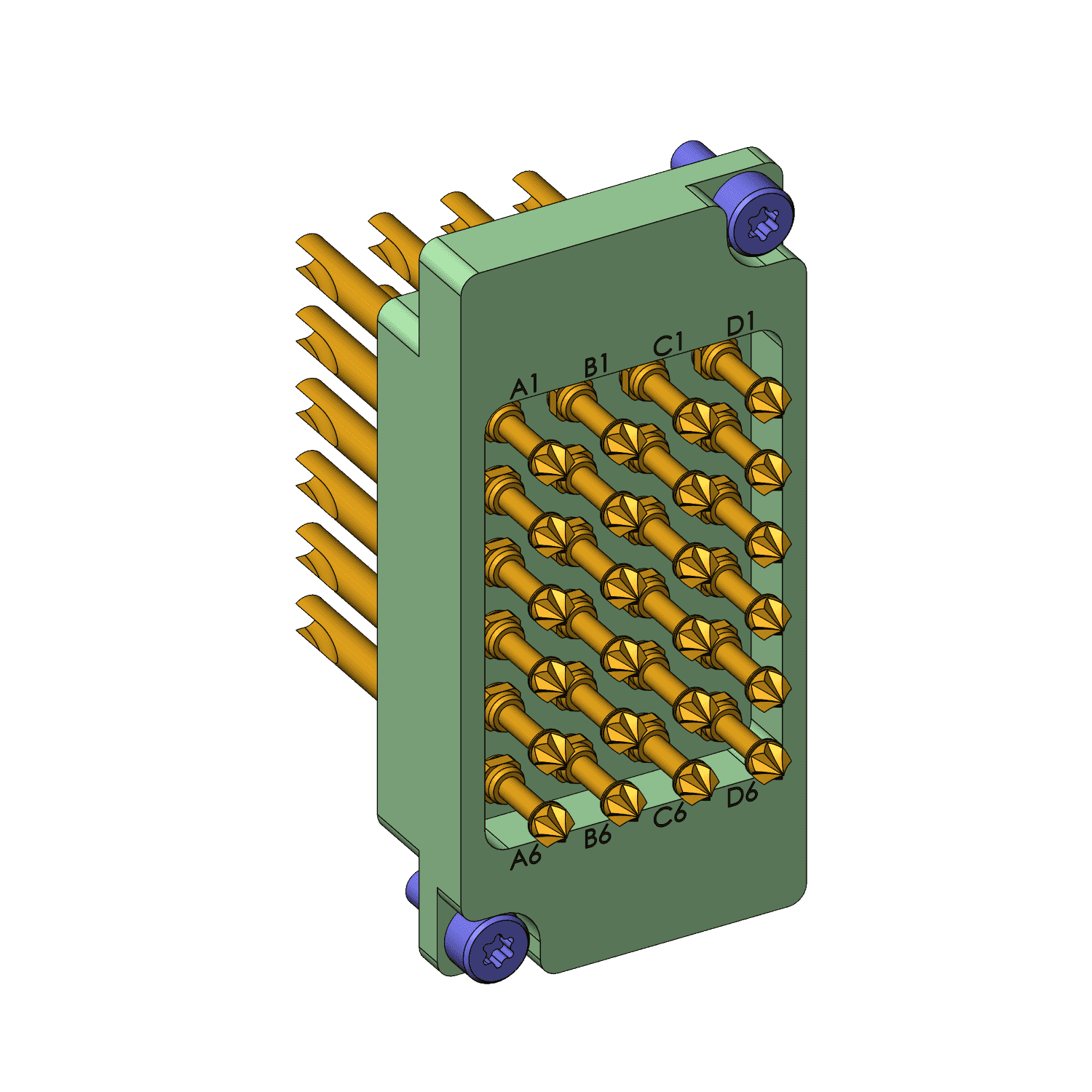

Interface block
SB-HS
- Type High-current block
- Version Device under test (DUT) side
- Connection Solder cup
- Accessory type Customising accessories
INGUN SELECTION

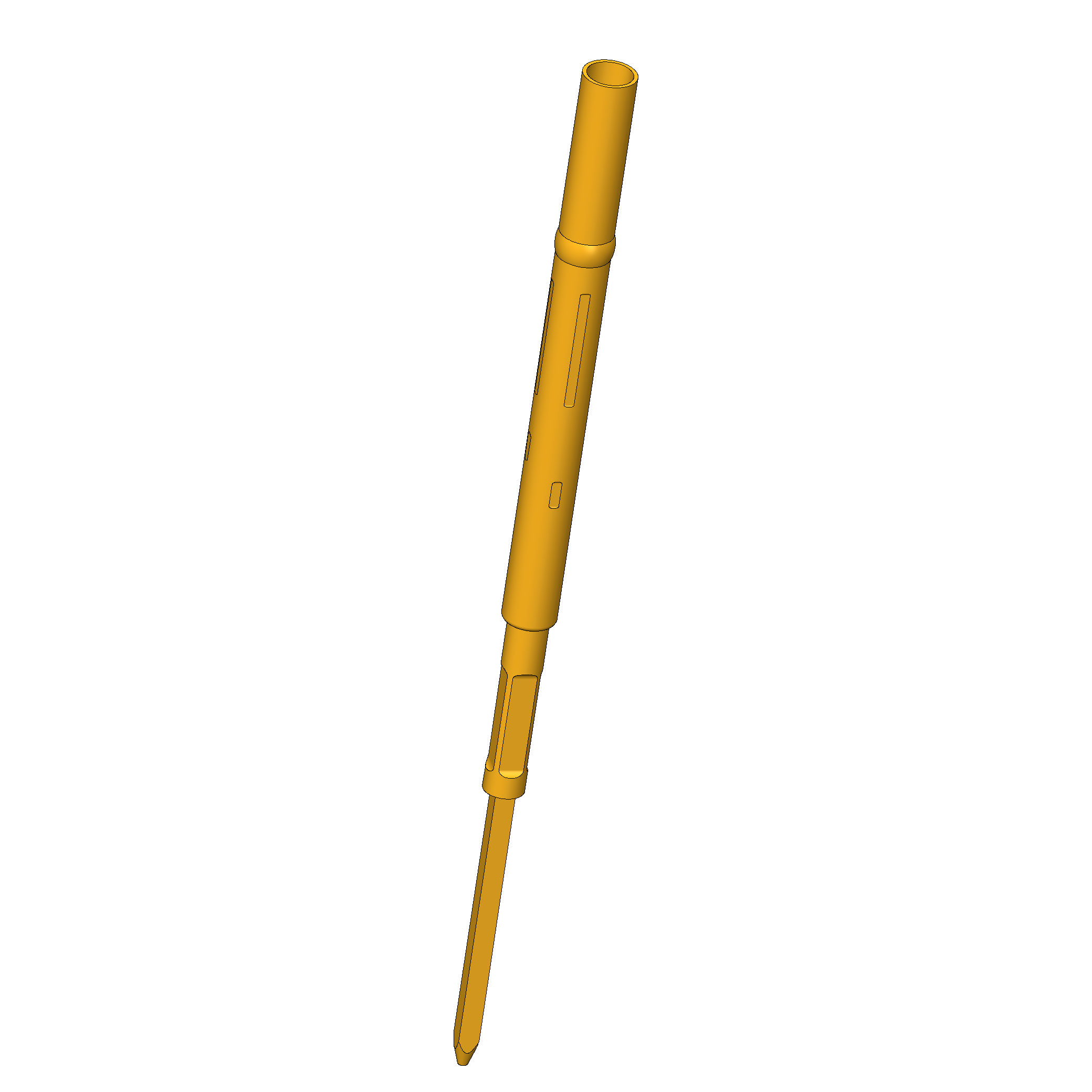

Receptacle
KS-002
- Total length 24.2 mm [.952 in] – 33.5 mm [1.31 in]
- Collar diameter 1.78 mm [.07 in]
INGUN SELECTION

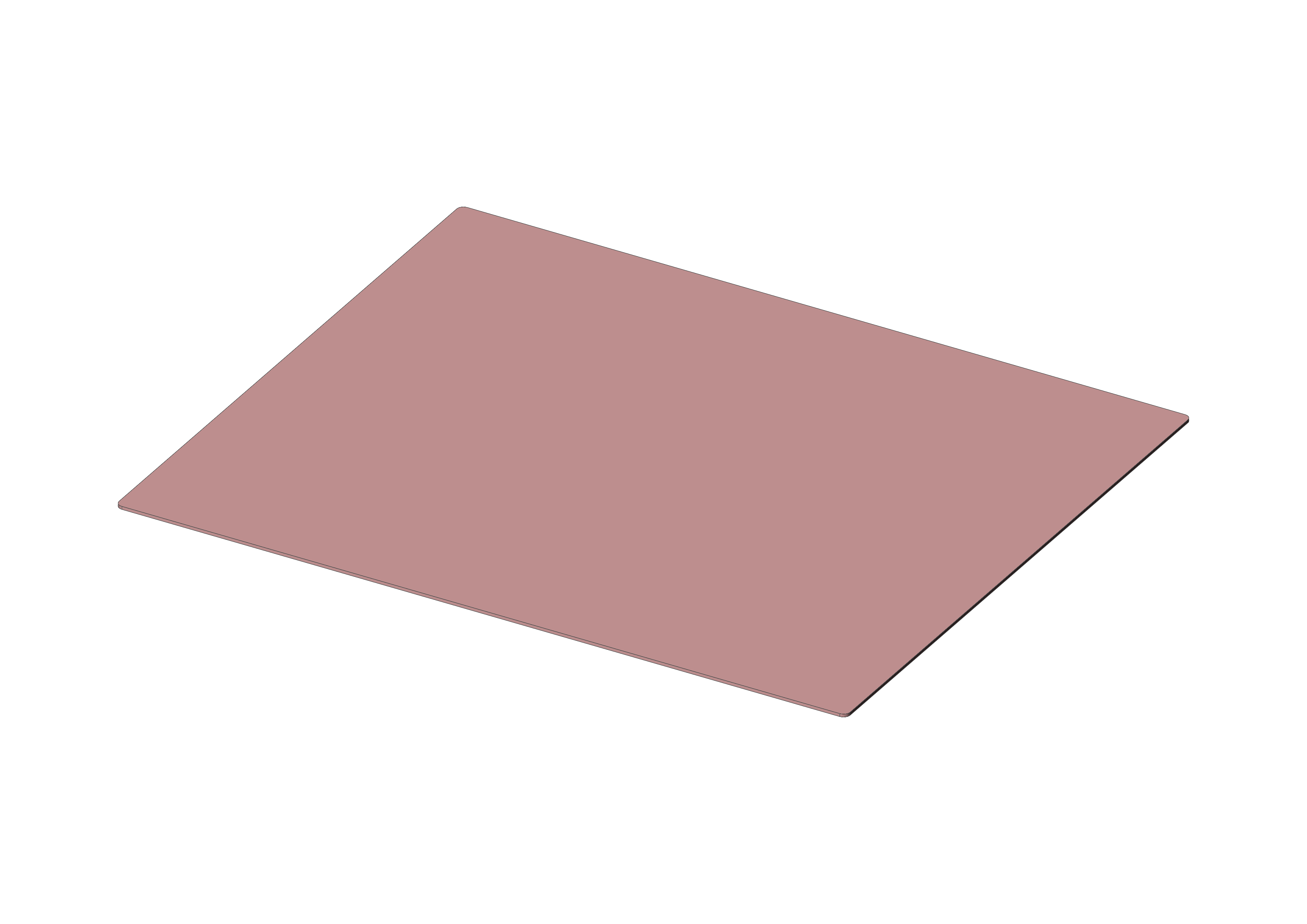

Cleaning mat
KRM
- Type Mat 2.3 mm
- Version ESD charging possible
- Accessory type Cleaning accessories
- Useable area (WxD) 400 x 690 mm [15.7 x 27.1 in]
INGUN SELECTION
INGUN SELECTION

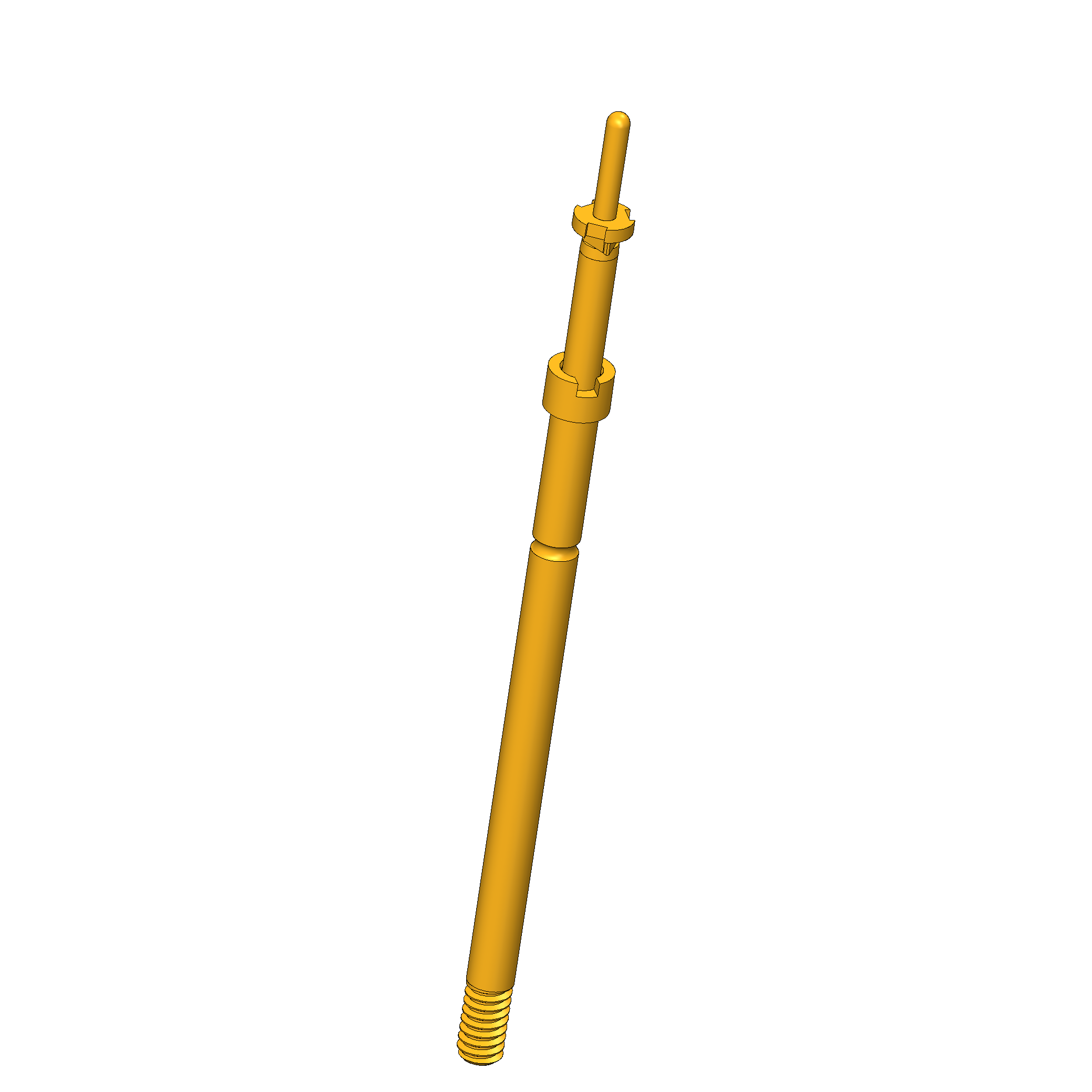

Test Probe
T-912 M
- Grid 2.54 mm [100 mil] – 5.5 mm [216 mil]
- Total length 34 mm [1.33 in] – 39 mm [1.53 in]
INGUN SELECTION

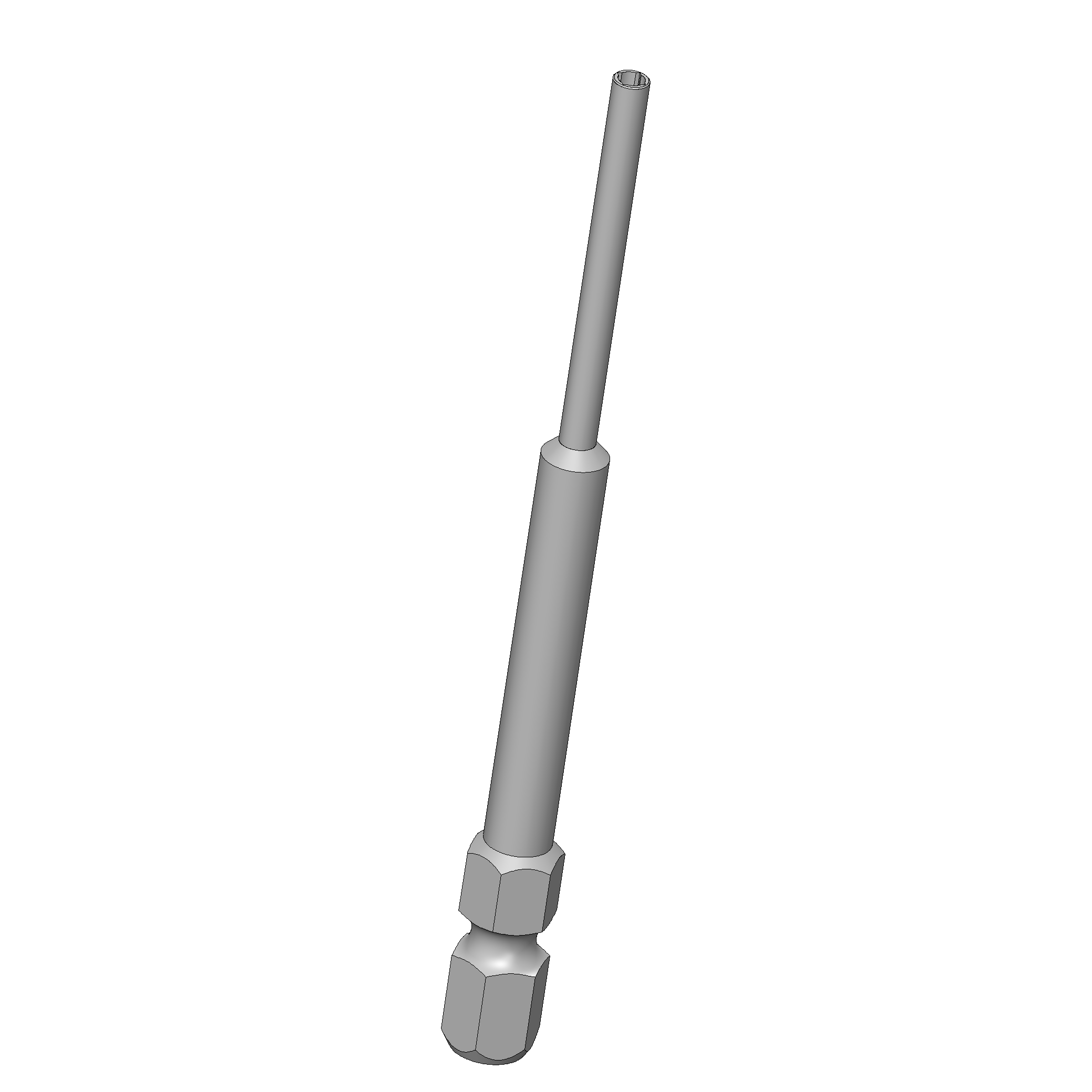

Insertion Tool
BIT-GKS
- Max. tip diameter 1 mm [.039 in] – 25 mm [.984 in]
- Min. tip diameter 0 mm [0 in] – 6.5 mm [.255 in]
INGUN SELECTION

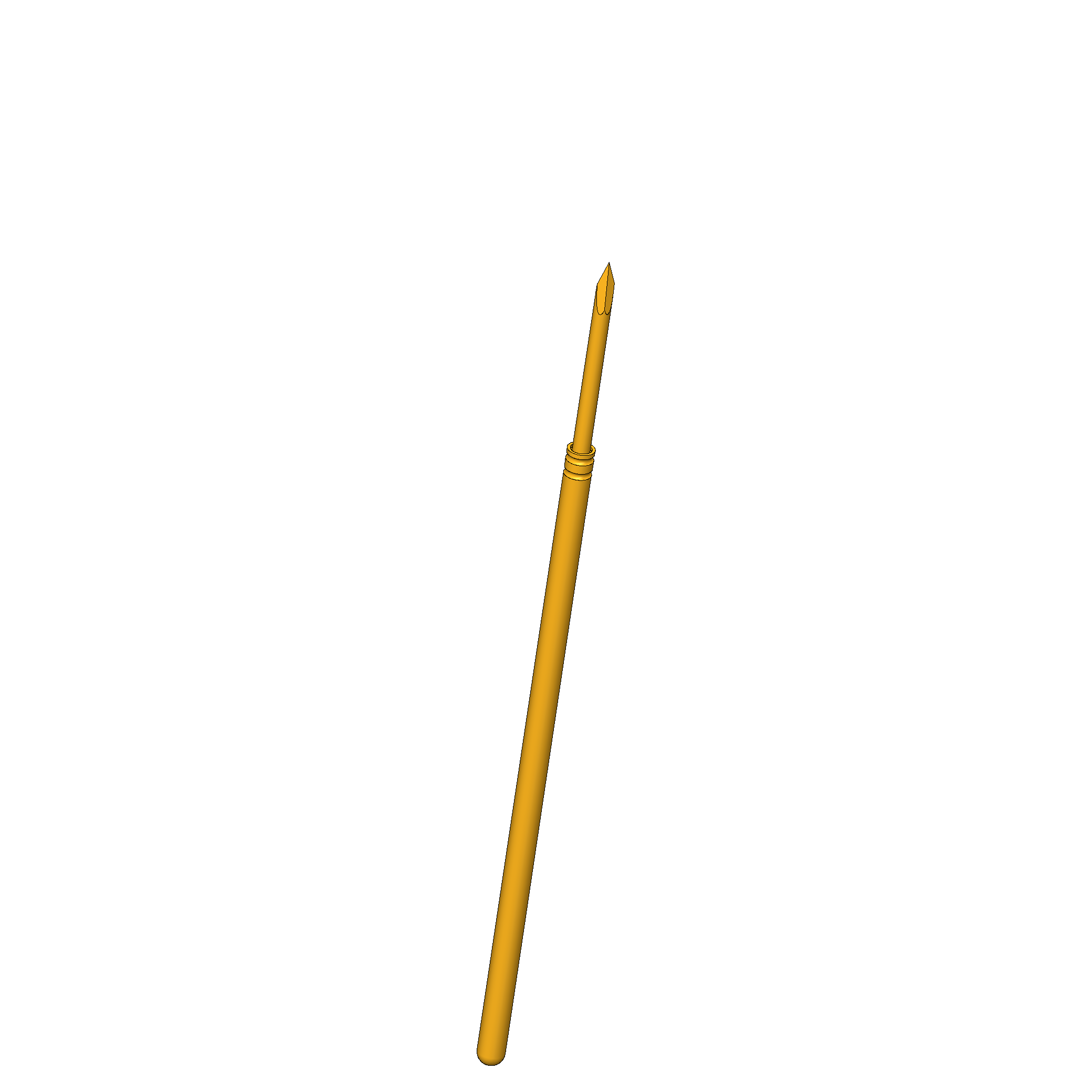

Test Probe
GKS-075
- Grid 1.91 mm [75.1 mil]
- Total length 33.1 mm [1.3 in] – 35.5 mm [1.39 in]
INGUN SELECTION

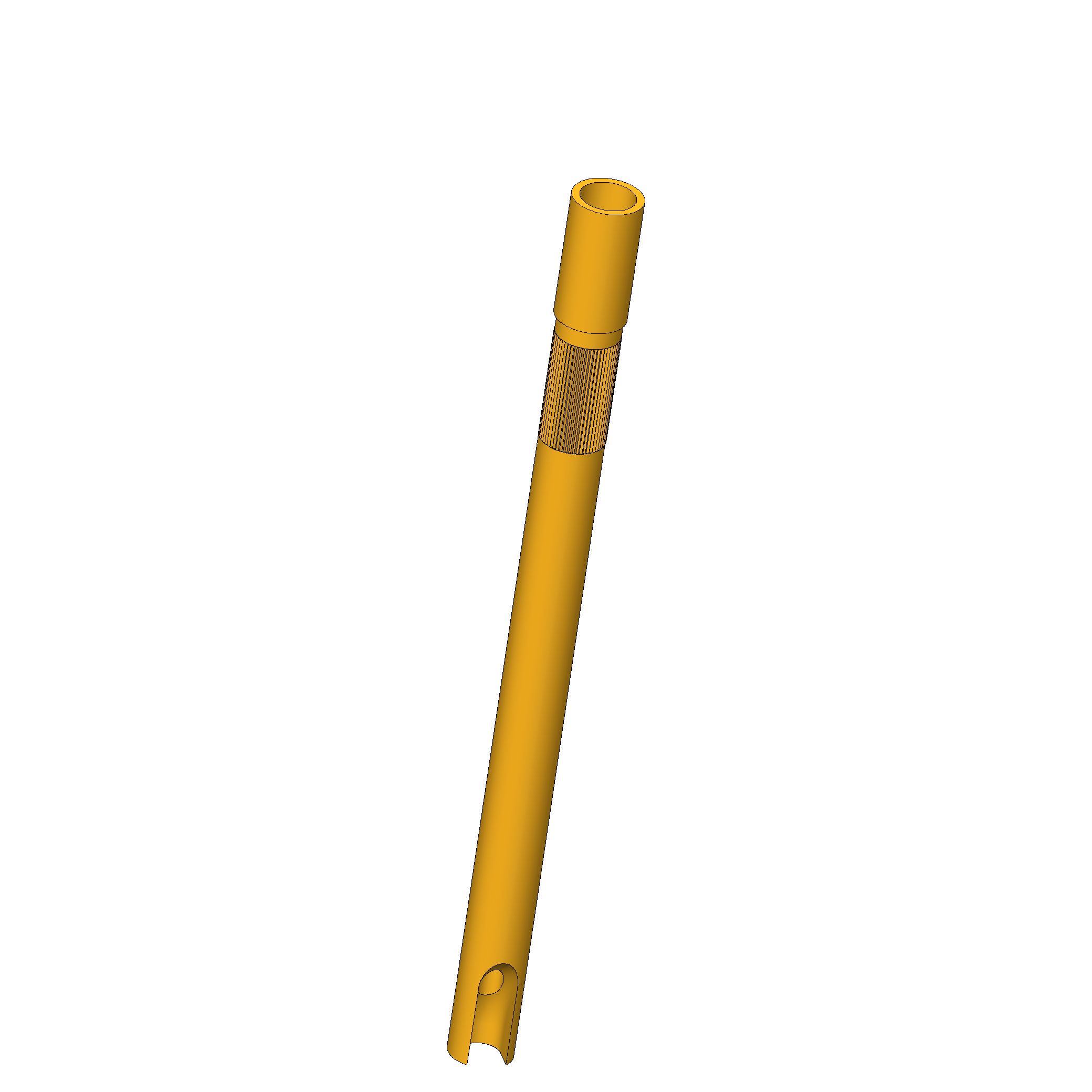

Receptacle
KS-899 M
- Total length 24.5 mm [.964 in]
- Collar diameter 1.84 mm [.072 in]
INGUN SELECTION

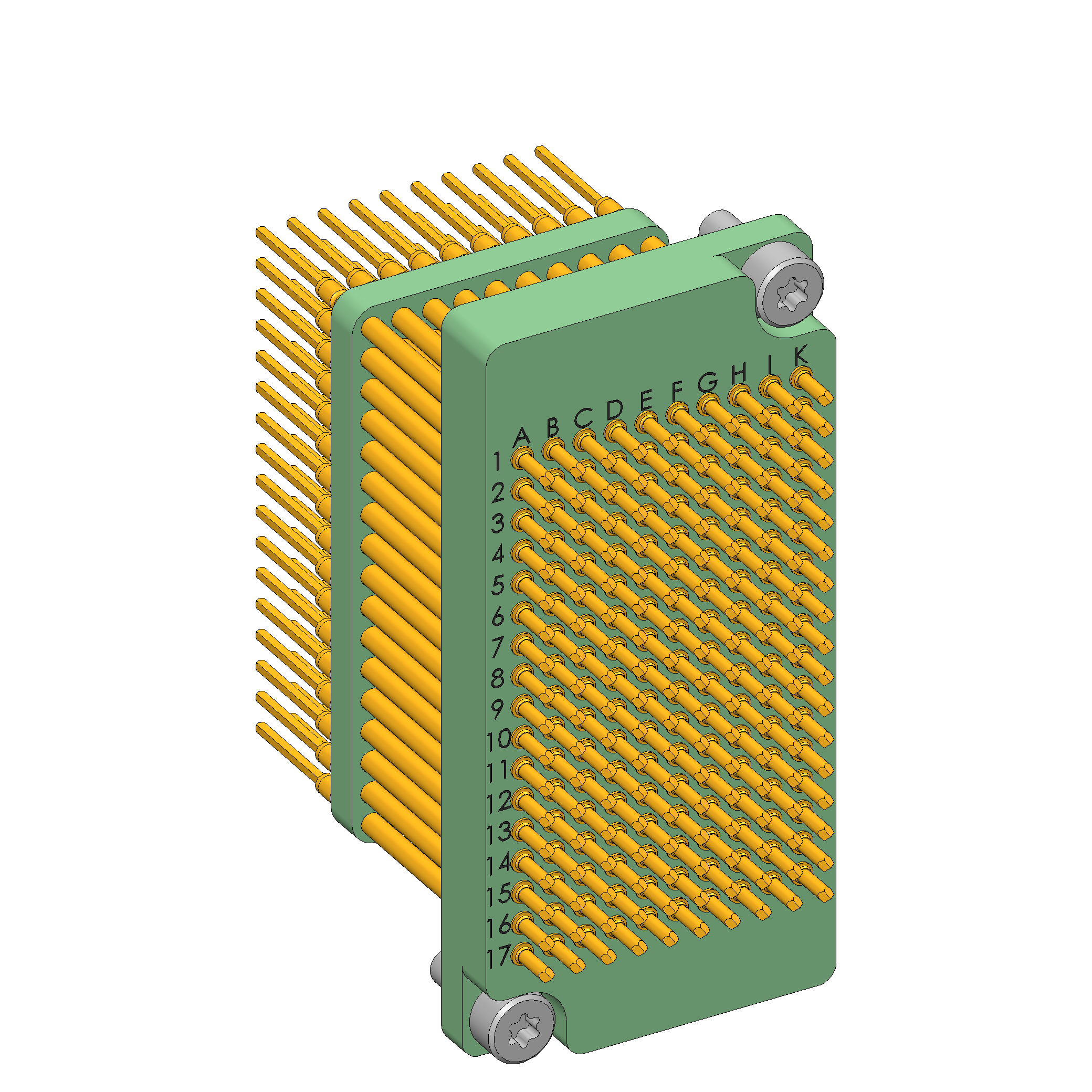

Interface block
SB-SI
- Type Signal block
- Version Device under test (DUT) side
- Connection Solder cup
- Accessory type Customising accessories
INGUN SELECTION

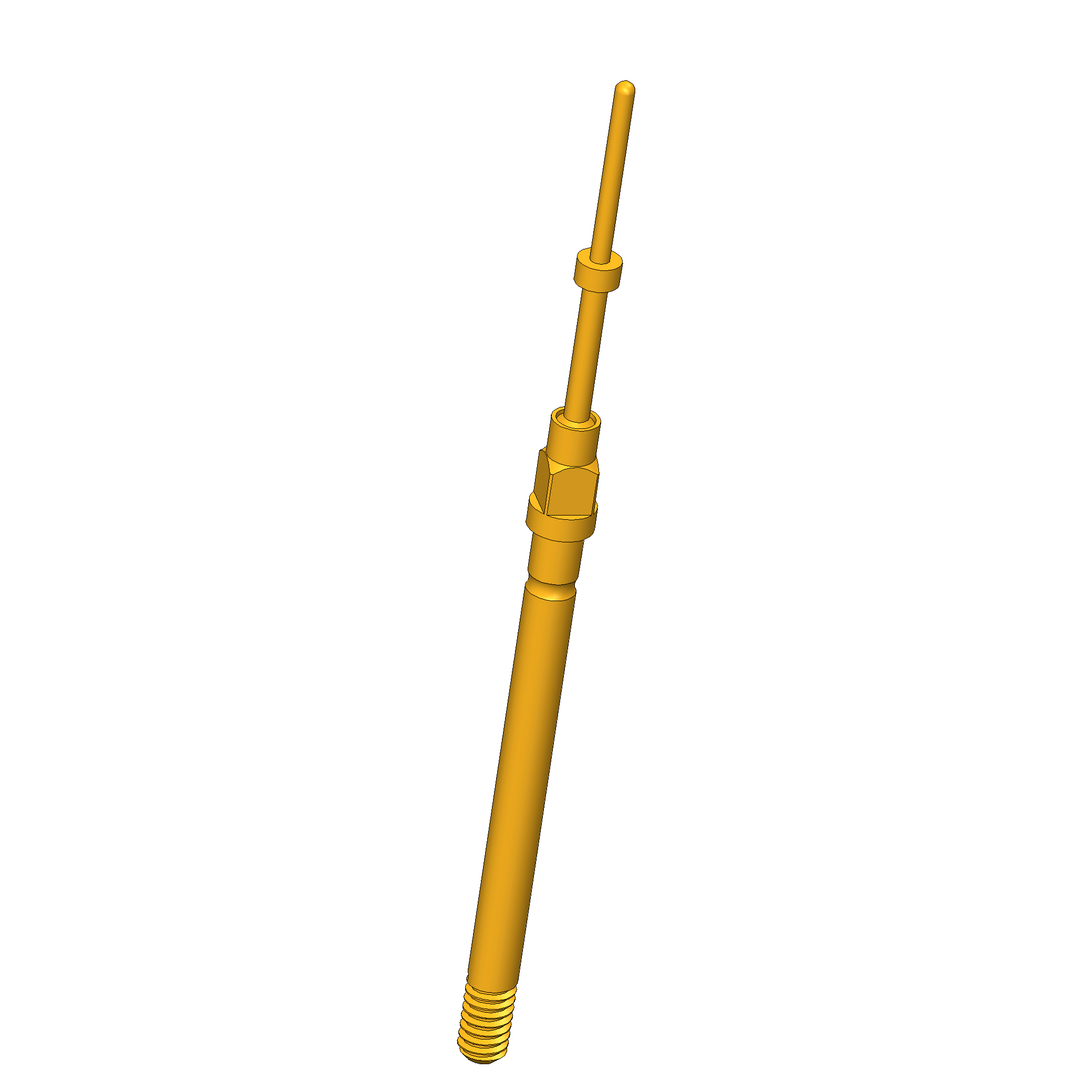

Test Probe
T-001 M
- Grid 1.91 mm [75.1 mil]
- Total length 20.5 mm [.807 in] – 22 mm [.866 in]
INGUN SELECTION
INGUN SELECTION
Test Probe

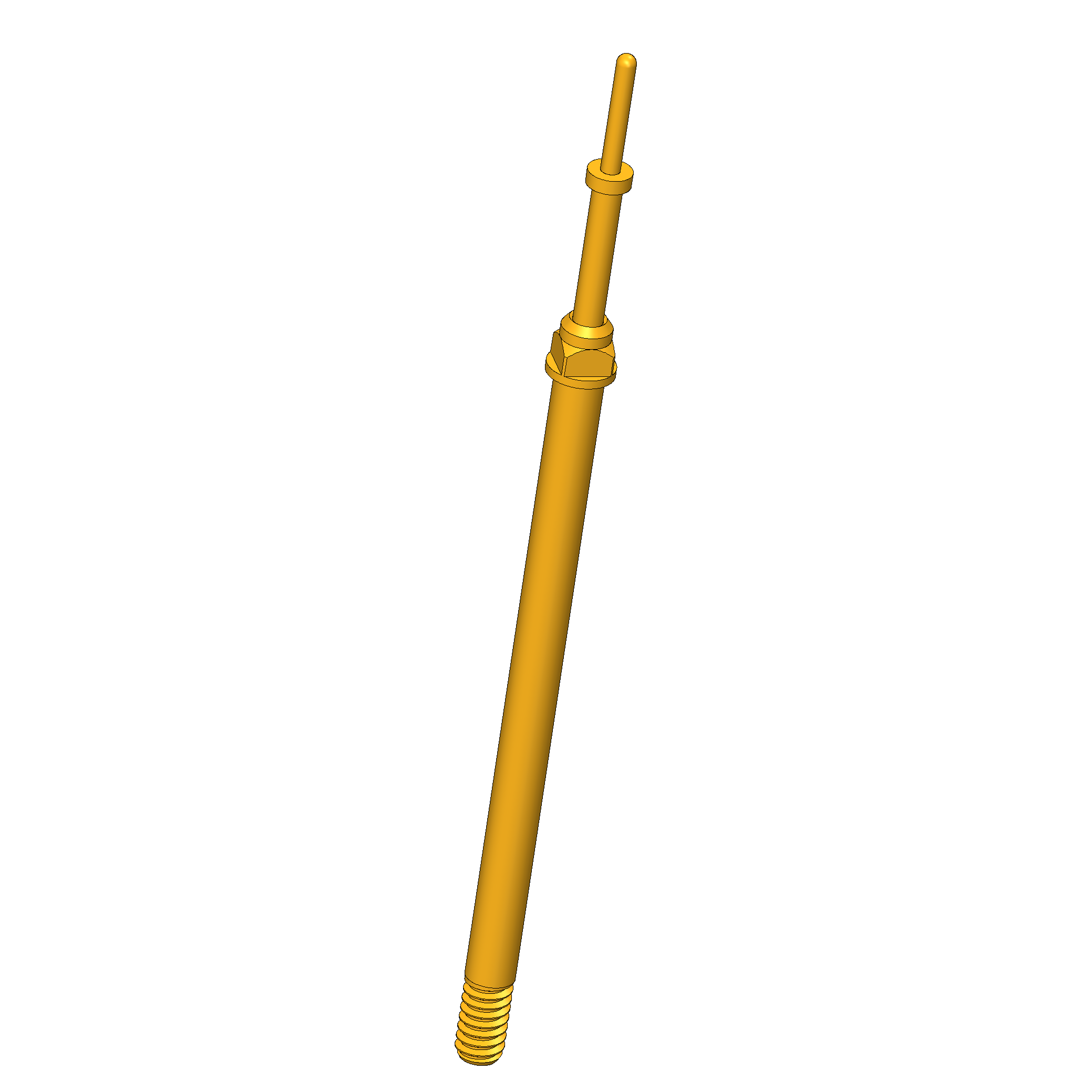

T-112 M
- Grid 2.54 mm [100 mil] – 4 mm [157 mil]
- Total length 33.3 mm [1.31 in] – 41 mm [1.61 in]
INGUN SELECTION
Test Probe

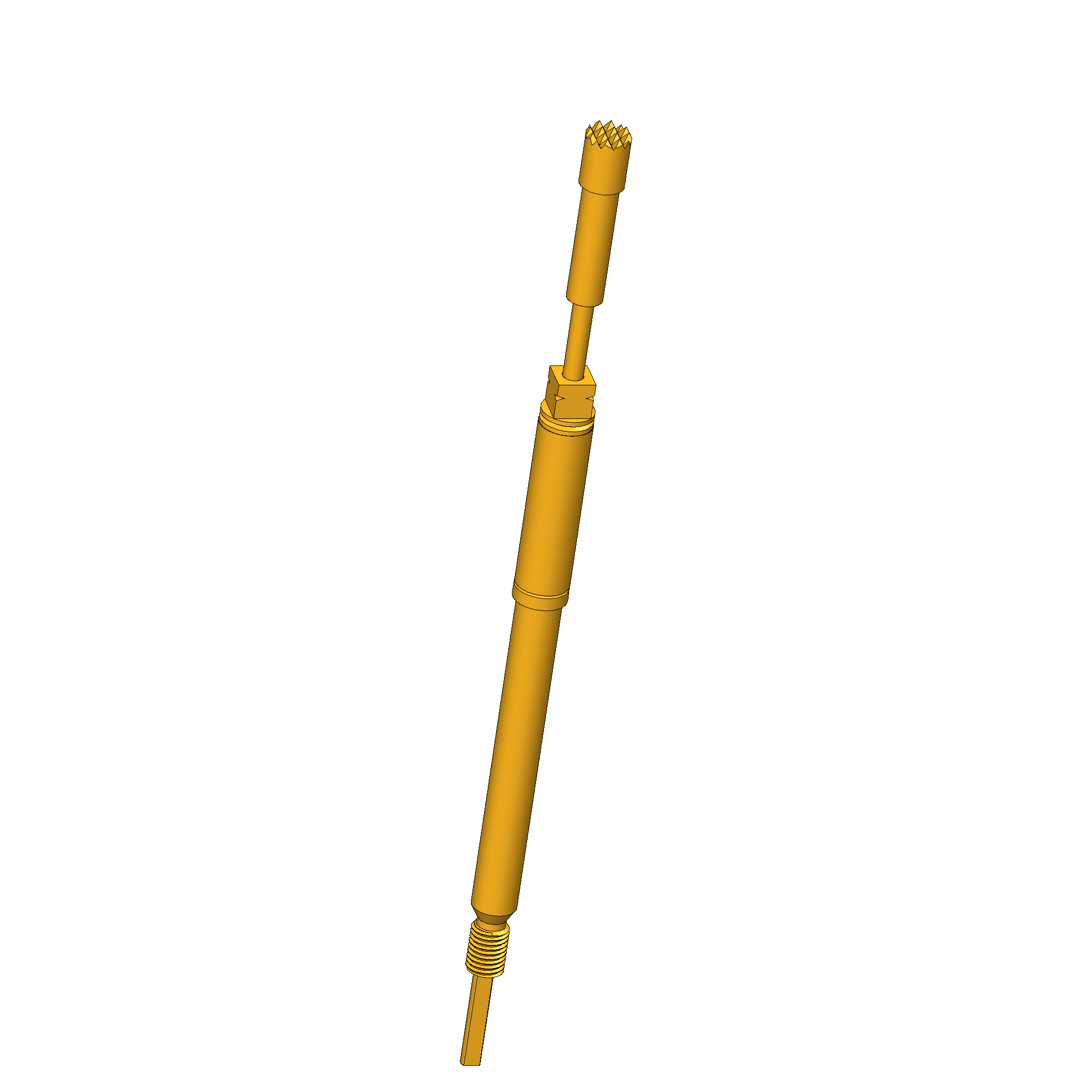

VF4
- Grid 4 mm [157 mil] – 4.5 mm [177 mil]
- Total length 69.5 mm [2.73 in] – 75.5 mm [2.97 in]
INGUN SELECTION

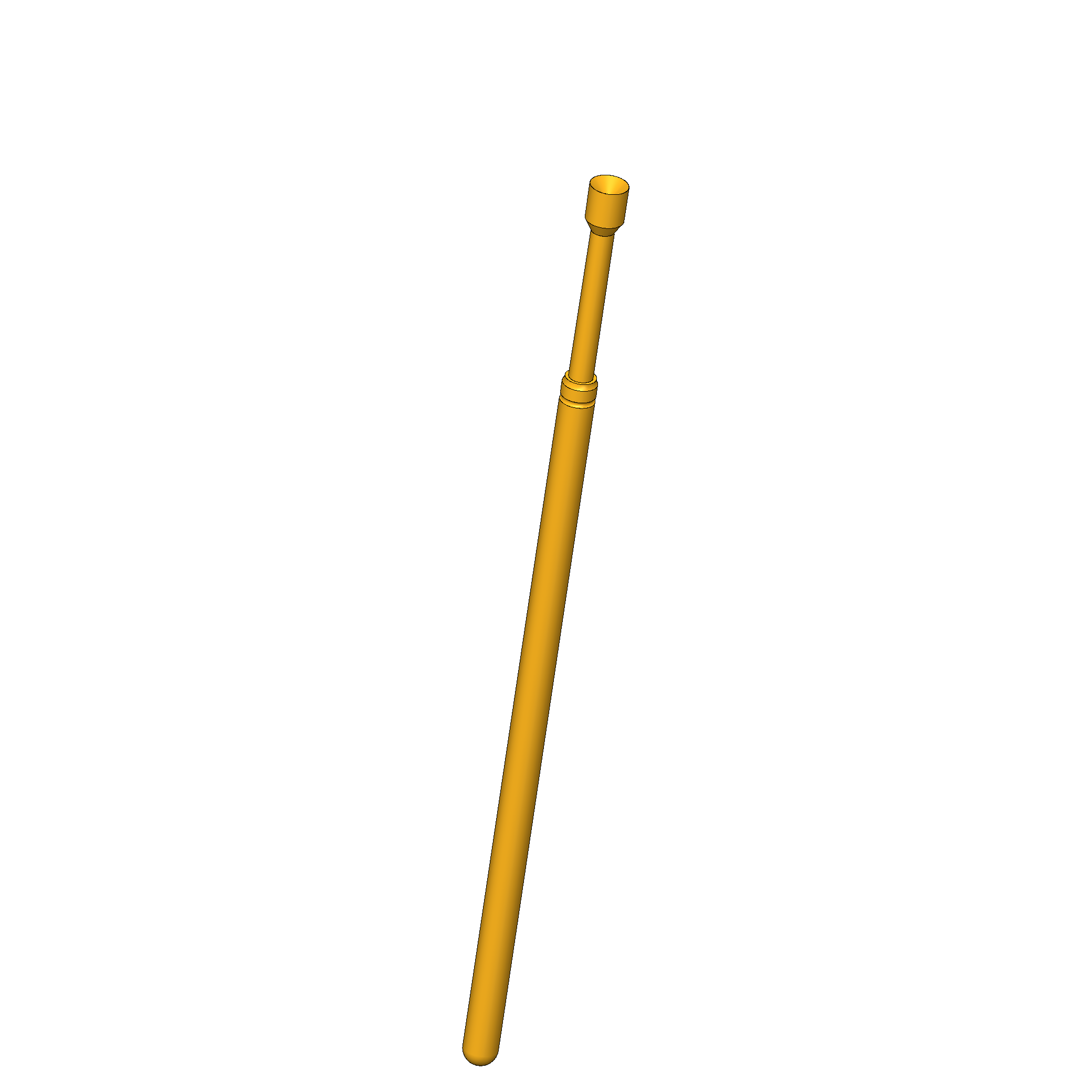

Test Probe
GKS-100 E
- Grid 2.54 mm [100 mil] – 3.5 mm [137 mil]
- Total length 38.4 mm [1.51 in] – 43.4 mm [1.7 in]
INGUN SELECTION
Test Probe

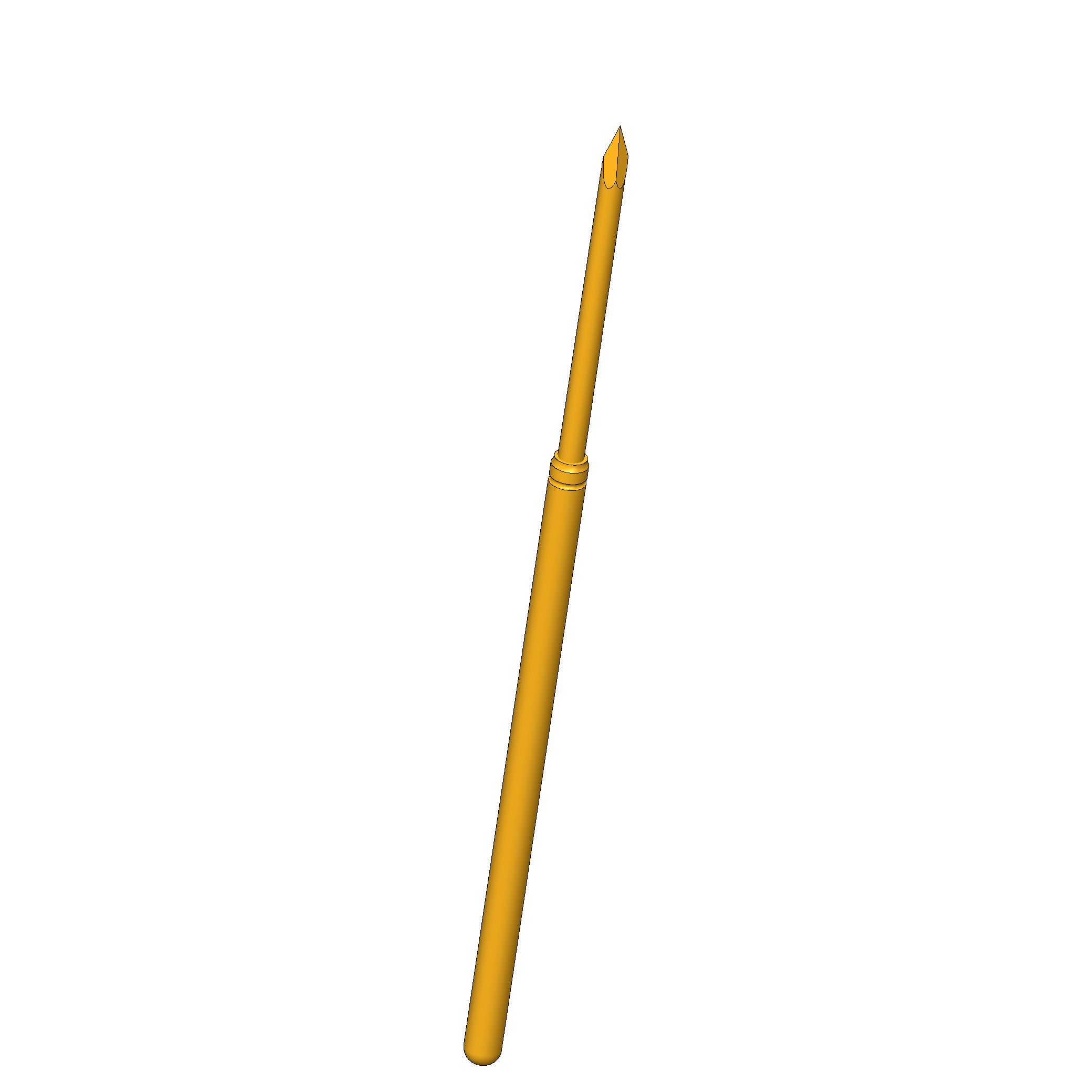

GKS-135
- Grid 2.54 mm [100 mil] – 3 mm [118 mil]
- Total length 38.7 mm [1.52 in] – 40.7 mm [1.6 in]
INGUN SELECTION
INGUN SELECTION
High-current test probe

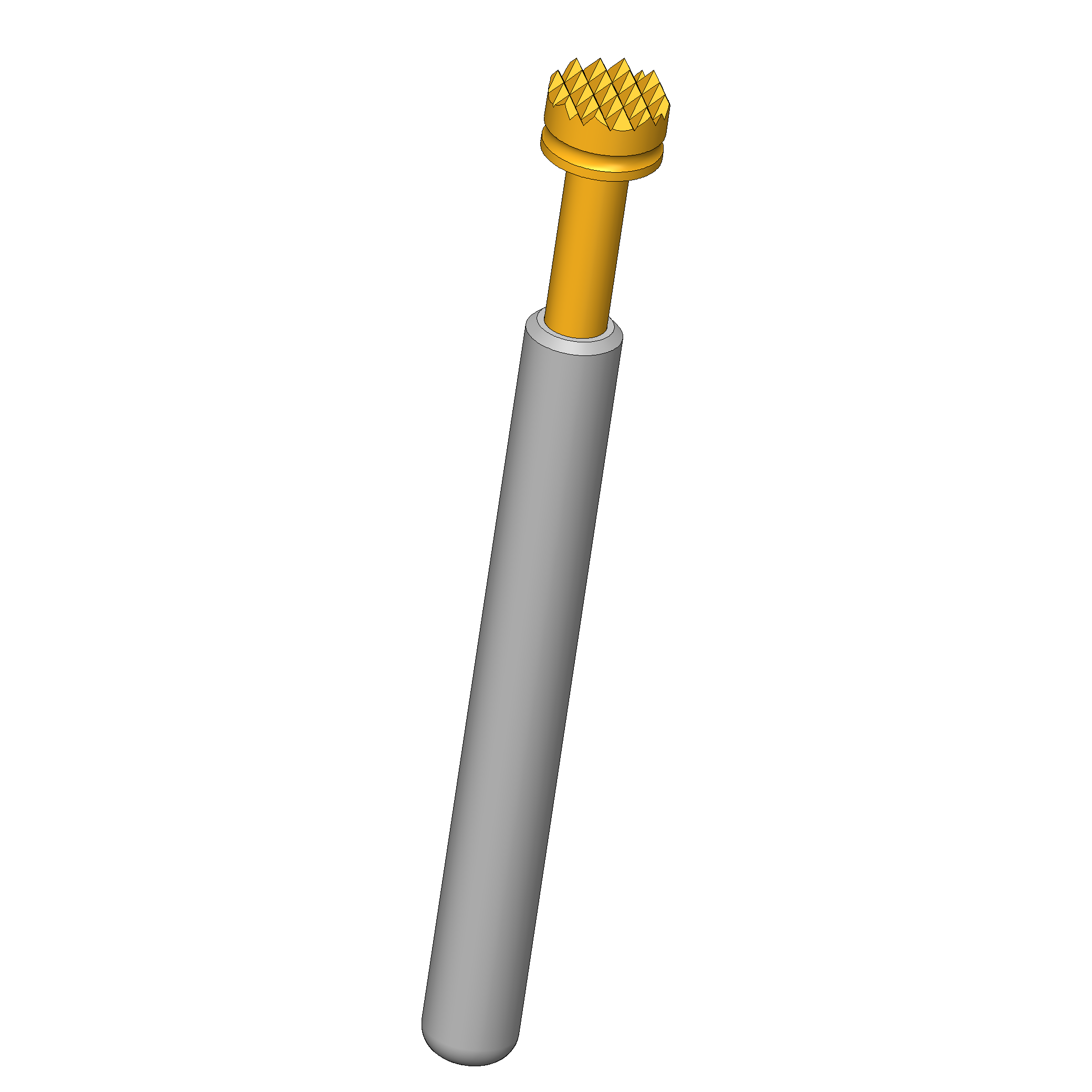

HSS-005
- Grid 4.75 mm [187 mil]
- Total length 36.1 mm [1.42 in]
